IRC720 720nm IR Cut-off Filter, High Visible Light Transmission
$5.20

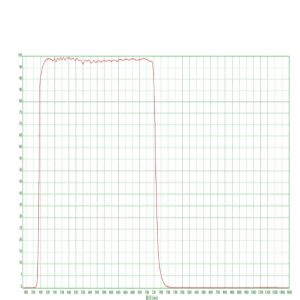

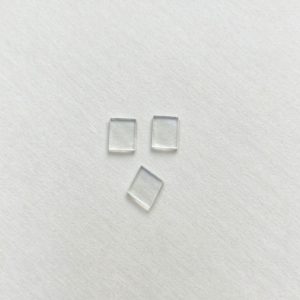

The IRC720 infrared cut-off filter uses QB blue glass as the absorption-based material, featuring high transmittance in the 400-700nm visible light range and effectively blocking infrared stray light above 720nm. It is commonly available in two specifications: 8×8×1mm square and Φ10×1mm round. With anti-reflective (AR) coatings on both sides to reduce reflection, it offers good color reproduction for imaging. It is widely used in miniature camera modules, machine vision, and monitoring sensors, and can also be customized to specific dimensions as needed.
描述
About Us
Beijing Lihebo New Materials Co., Ltd. is a high-tech enterprise specializing in optical materials, with expertise in glass production and coating technologies. The company maintains a rigorous quality control system covering raw material selection, production, and finished product inspection. Its products are exported to the U.S., Russia, France, Germany, South Korea, and Indonesia.
其他信息
| Substrate | Optical Glass |
|---|---|
| Filter Type | Absorption Infrared Cut Filter |
| Coating | Double-sided Multi-layer AR Anti-reflection Coating,Customizable |
| Passband | 400~700nm Visible Light |
| Application | CMOS/CCD image sensor, mini camera module, machine vision, surveillance camera |
